Description

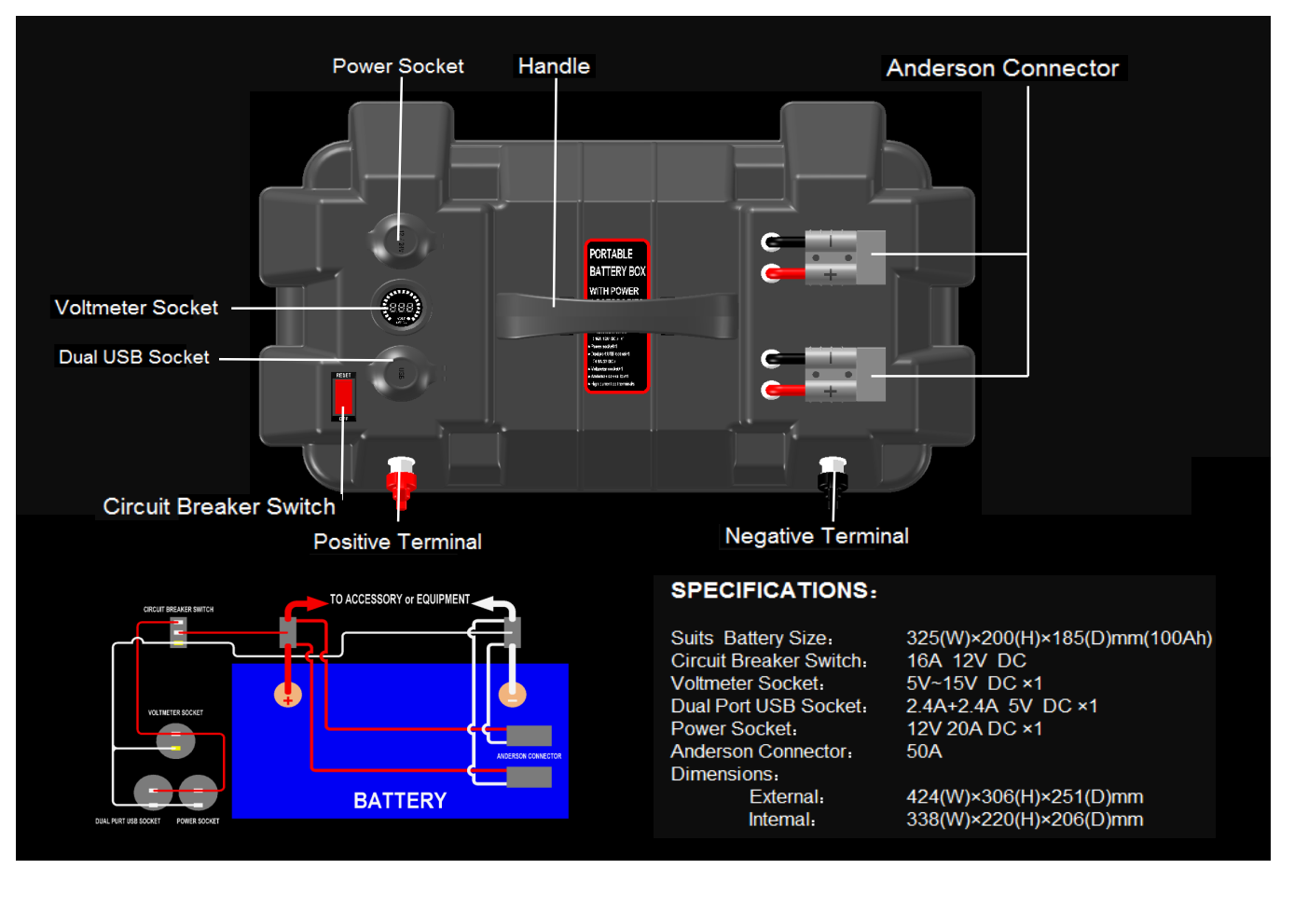

Versatile power box with dual USB ports, 12V socket, digital voltmeter, and dual 50A Anderson plugs. Built-in circuit breaker ensures safe and stable power management.
Parameter
| Item No. | RBB0202 |
| 1. Packaging Specifications | |
| Outer Carton Material | PP (Polypropylene) |
| Inner Box Dimensions (Unit) | 43 × 27 × 34 cm |
| N.W. | 1.65 kg |
| G.W. | 2.7 kg |
| Packing Quantity | 4 PCS / Carton |
| Outer Carton Dimensions | 56 × 45 × 70 cm |
| Carton Gross Weight (G.W.) | 10.8 KG |
| 2. Main Component List (Per Unit) | |
| Power Socket | DS1011 12V Power Socket (Blue LED + Waterproof Cover) × 1 |
| Voltmeter | 12V Color Screen Digital Voltmeter × 1 |
| USB Charging Port | 4.8A Dual USB Port (with Waterproof Cover) × 1 |
| Protection Switch | Overload Protection Switch / Circuit Breaker × 1 |
| Connector | Anderson Plug 50A × 2 |
| Accessory | Luggage Strap / Carrying Belt × 1 |
| 3. Wire Specification Details (Per Unit) | |
| 14AWG Wire (UL1015) | |
| – Red Wire | L=80mm × 1 pcs |
| L=100mm × 3 pcs | |
| – Black Wire | L=100mm × 3 pcs |
| – Unspecified Color | L=340mm × 1 pcs |
| 8AWG Wire (Heavy Duty) | |
| – Red Wire | L=340mm × 2 pcs |
| L=280mm × 1 pcs | |
| – Black Wire | L=290mm × 1 pcs |
| L=140mm × 1 pcs | |
| L=250mm × 1 pcs |
Details
