Description

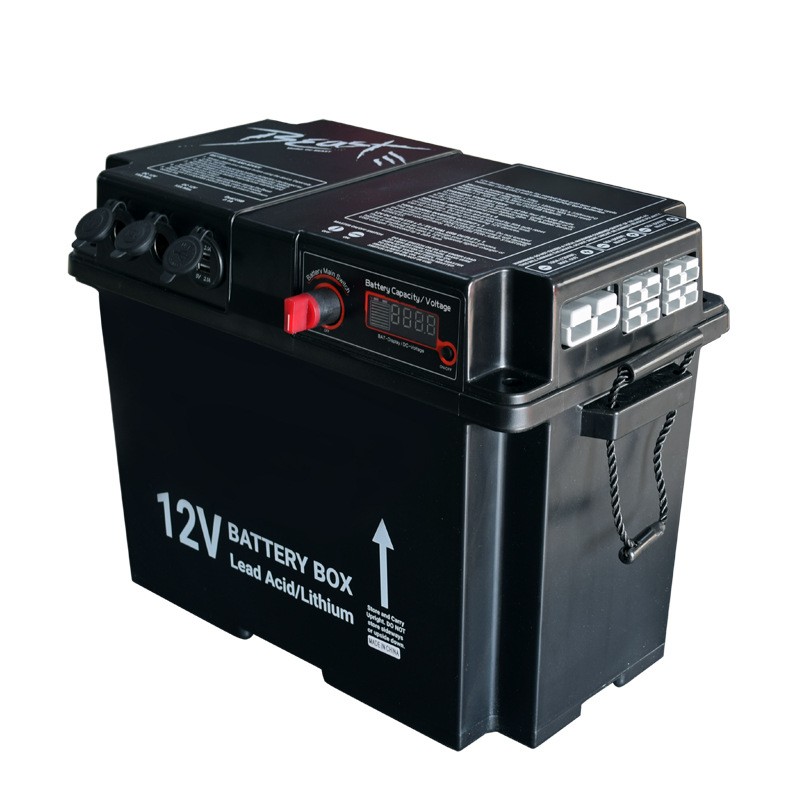

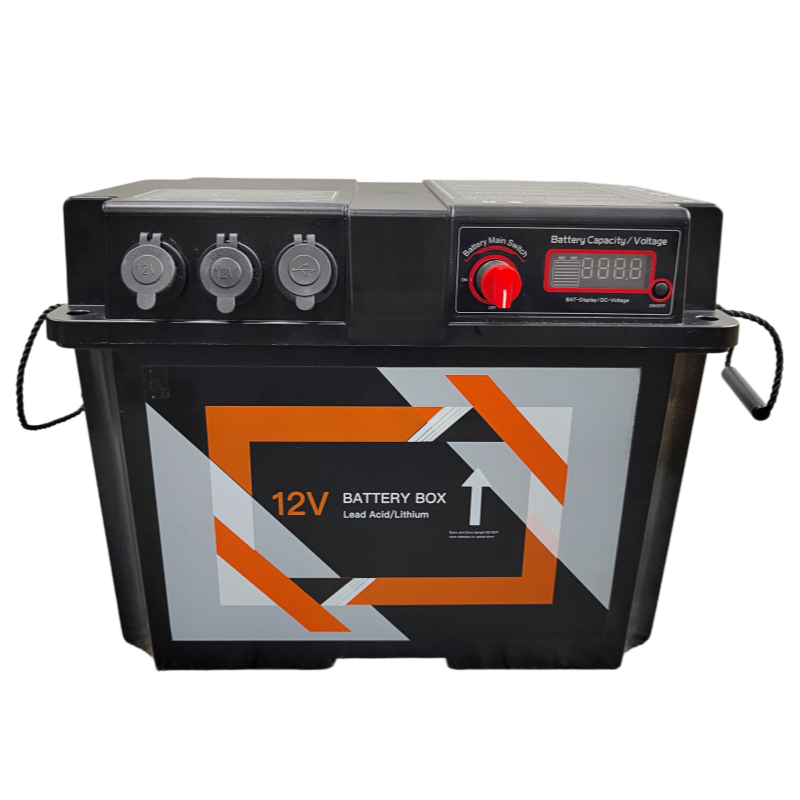

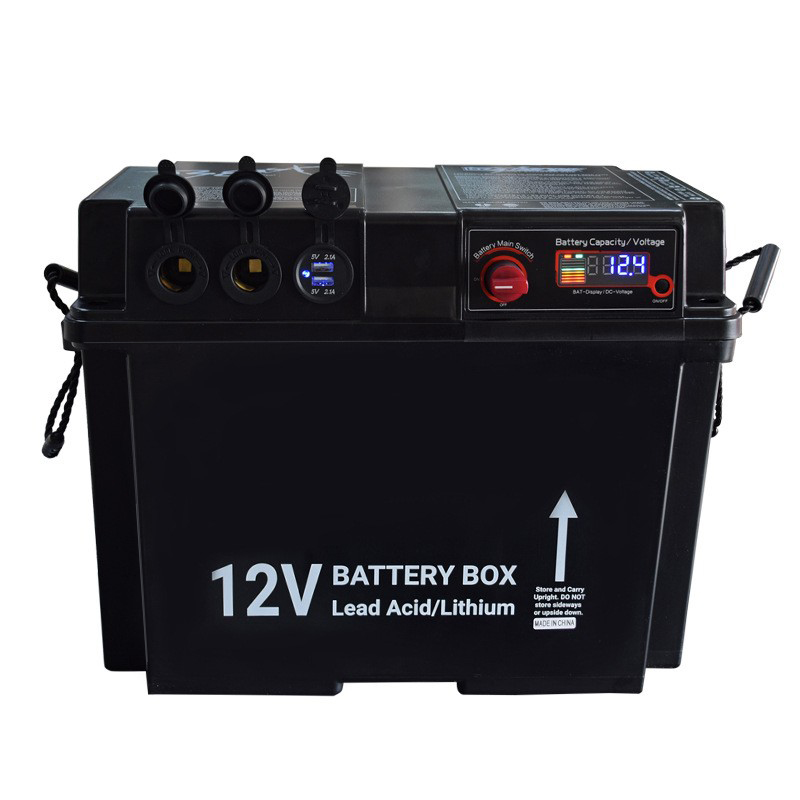

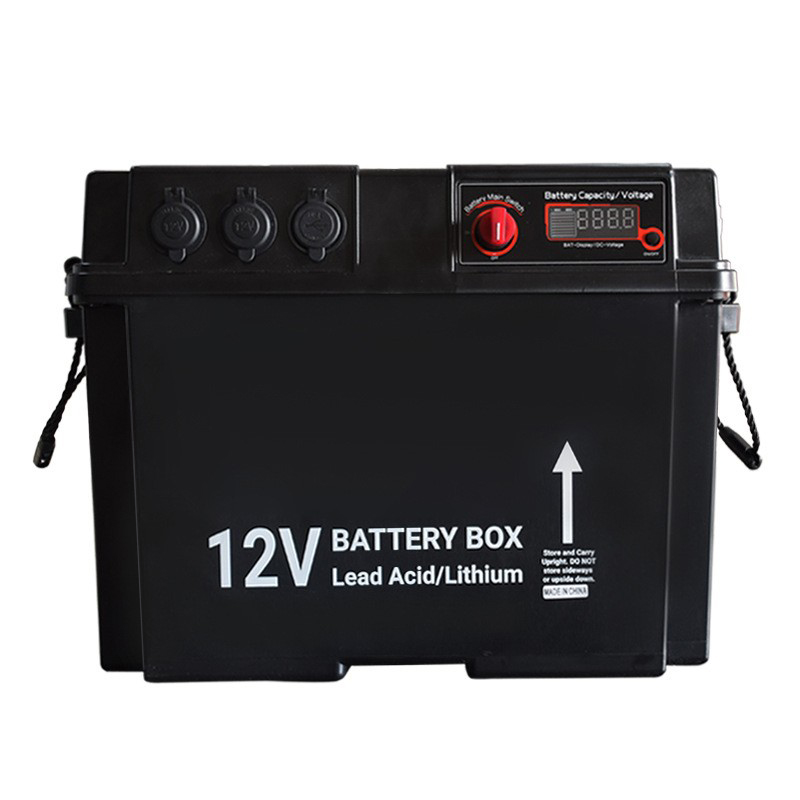

High-capacity power box with dual 12V sockets, voltage meter, and multiple Anderson plugs (50A & 100A). Includes circuit breaker and auto-reset breakers for safe, reliable power management.
Parameter
| Item No. | RBB0201 |
| 1. Packaging Specifications | |
| Outer Carton Material | PP (Polypropylene) |

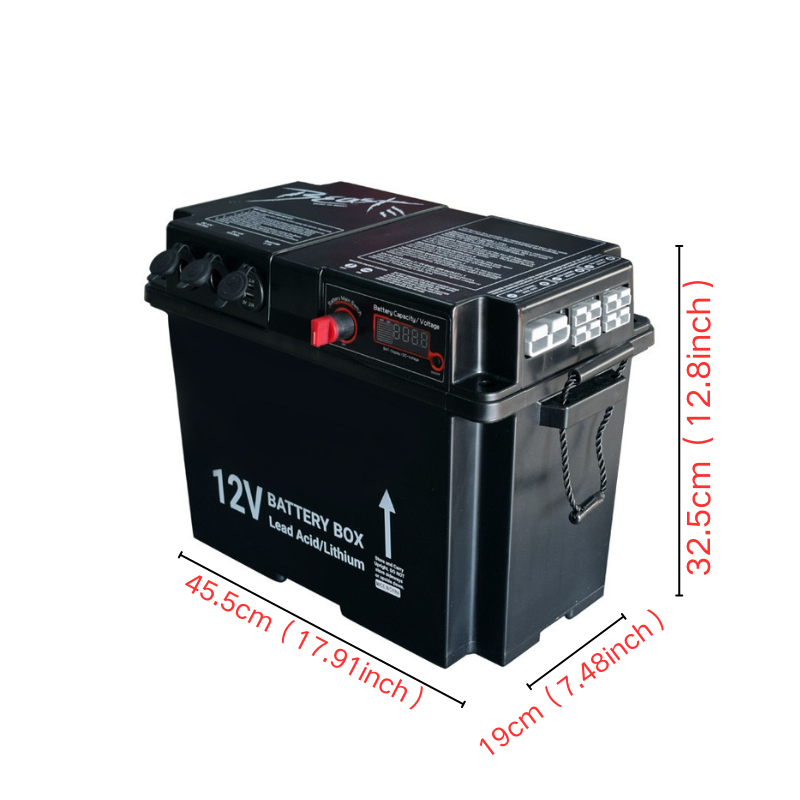

| Inner Box Dimensions (Unit) | 25 × 42 × 33 cm |
| N.W. | 4.25 kg |
| G.W. | 5.3 kg |
| Packing Quantity | 2 PCS / Carton |
| 2. Main Component List (Per Unit) | |
| Power Socket | DS1011 12V Power Socket × 2 |
| Voltage Meter | 12V Battery Voltage Meter × 1 |
| Battery Switch | YJ-BS-003 Battery Switch × 1 |
| Anderson Plug | Anderson Plug + Screws 100A × 1 |
| Anderson Plug | Anderson Plug + Screws 50A × 4 |
| Circuit Breaker | E99 Circuit Breaker 150A × 1 |
| Auto-Reset Breaker | E517 Auto-Reset Circuit Breaker (with Red Dust Cover) × 2 |
| Accessory | Handle Strap / Carrying Rope × 2 |

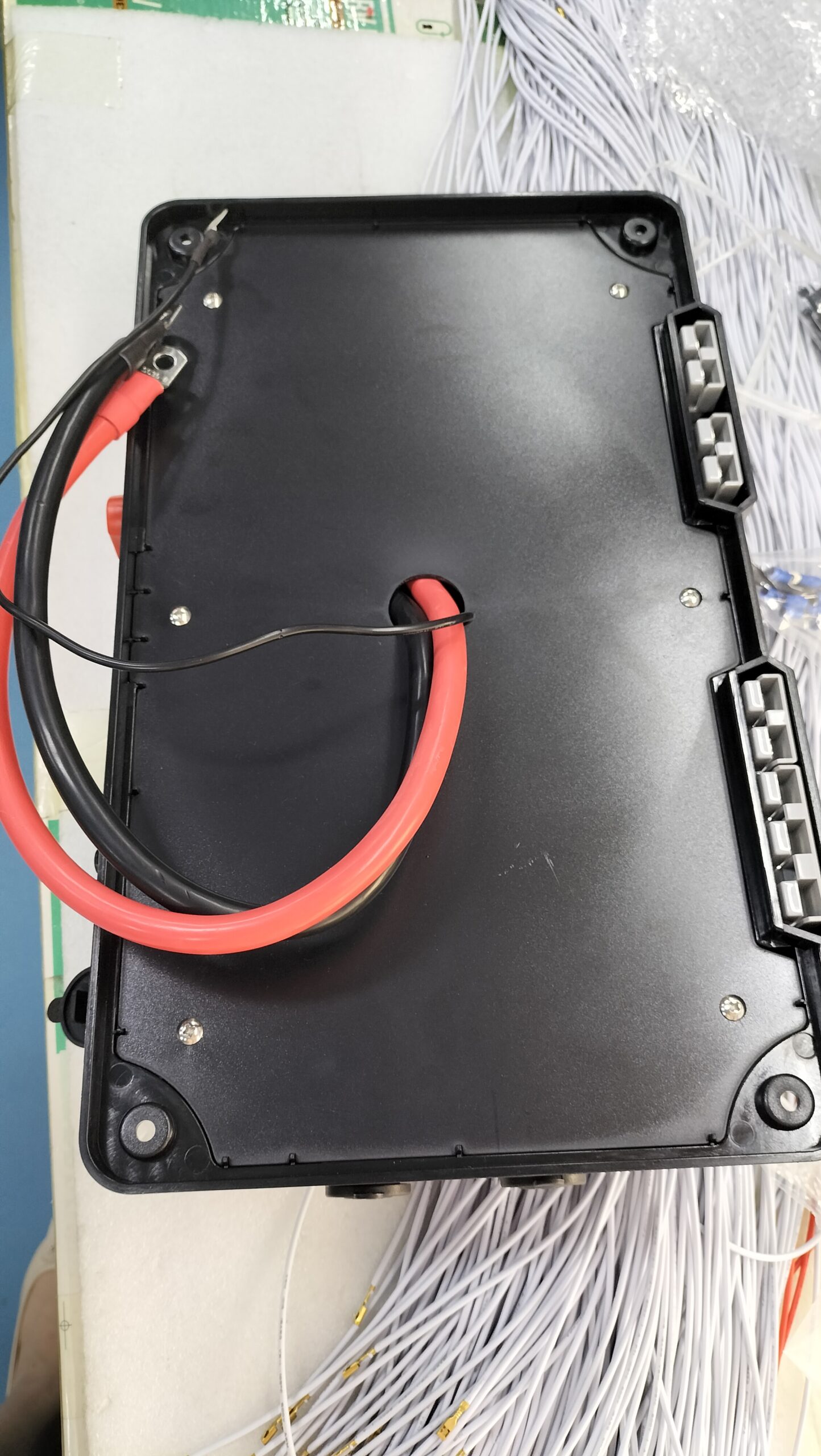

| 3. Wire Specification Details (Per Unit) | |
| 4AWG Wire (OD10.0) | |
| – Red + Black | L=47mm × 2 sets |
| – Red + Black | L=18mm × 2 sets |
| 10AWG Wire (UL1015) | |
| – Red Wire | L=18mm × 3 pcs |
| – Black Wire | L=18mm × 2 pcs |
| – Red Wire | L=25mm × 2 pcs |
| 16AWG Wire (UL1015) | |
| – Red Wire | L=10mm × 4 pcs |
| – Black Wire | L=10mm × 4 pcs |
Details
