Description
-
An electric winch is a motor-driven mechanical tool that uses electric power to wind cables, ideal for lifting heavy equipment, towing vehicles, or securing loads in industrial and outdoor scenarios.
Parameter
| Item No. | REW0304 |
| Pull | 14500LB |
| Description | Traction Force: 14,500 lbs (Approx. 6,590 kg)
Rope Type: Dyneema Rope
Voltage: 12/24V
Motor: 7.0hp/5.3kW Series-Wound DC Motor
Gear Set: 3-stage
Gear Ratio: 265:1
Winch Rope: Diameter 1.0cm(0.39inch), Length 24m
Drum Dimensions: Diameter 6.4cm(2.52inch), Length 22.3cm
Brake Type: Automatic Brake
Wireless Control: Available
Battery Cable Length: 3m(9.8ft)
|

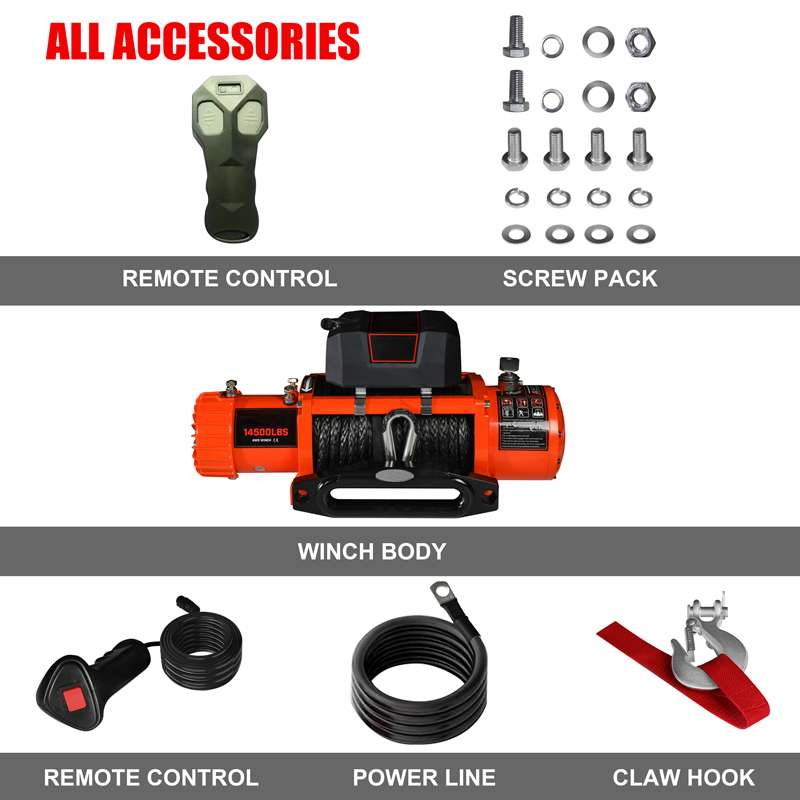

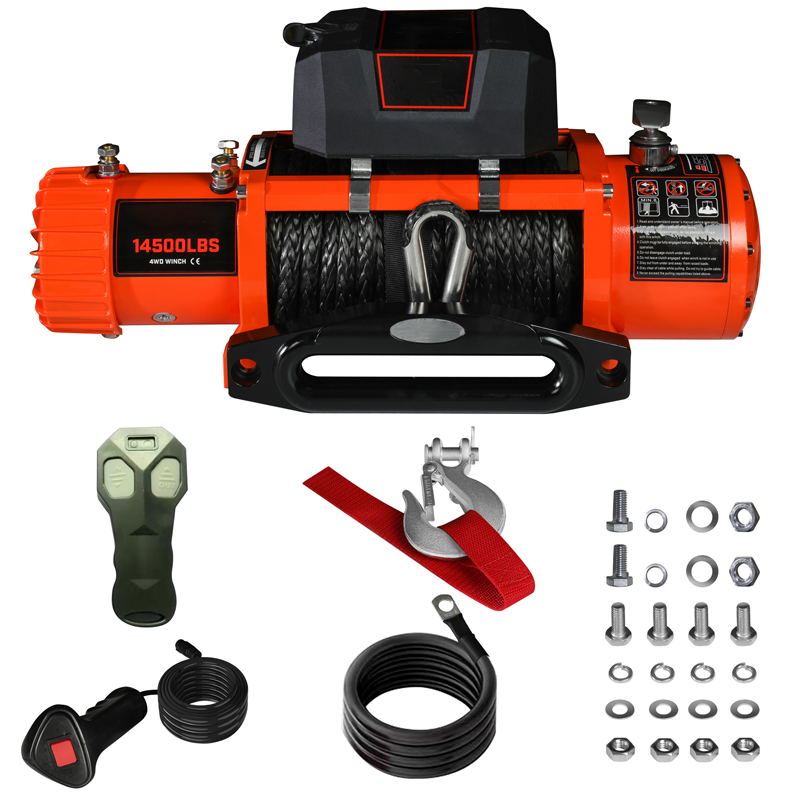

| Package List | Hook, Red Rope, Hardware Kit; Instruction Manual, Black Rope, Waterproof Control Box; Control Box Bracket, Wireless Remote Control; Wired Handle Switch, Rope Guide. |

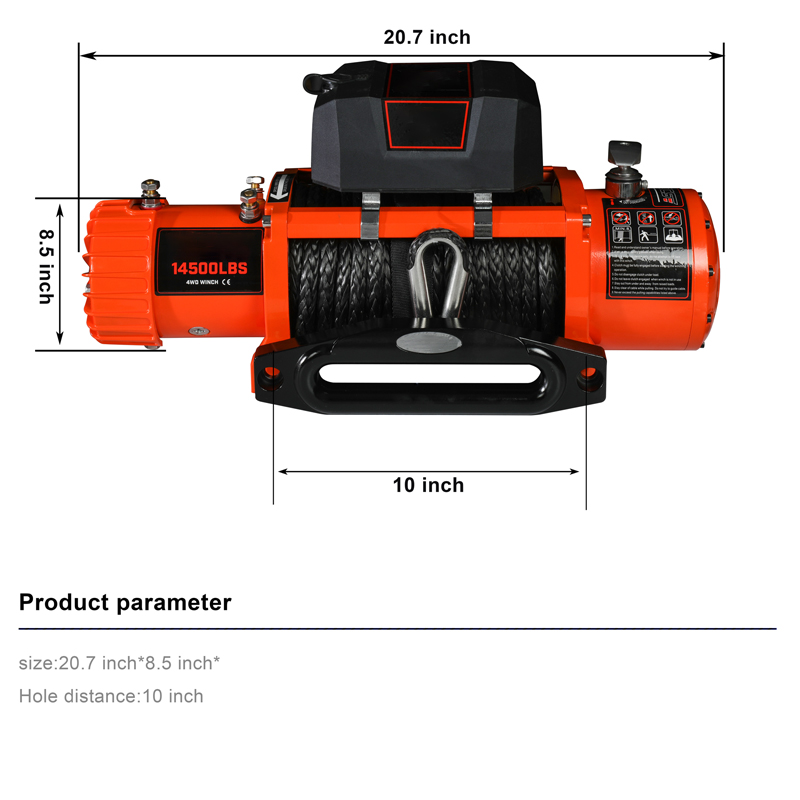

| Size | 60*34*25cm/23.6*13.4*9.8inch |
| Net Weight | 27kg / 59.5lbs |
| MOQ | 30 |
| Material | Dyneema Fiber |
| Type | Emergency Tool Kit |
| Place of Origin | Shanghai, China |
| Warranty | 12 months |
